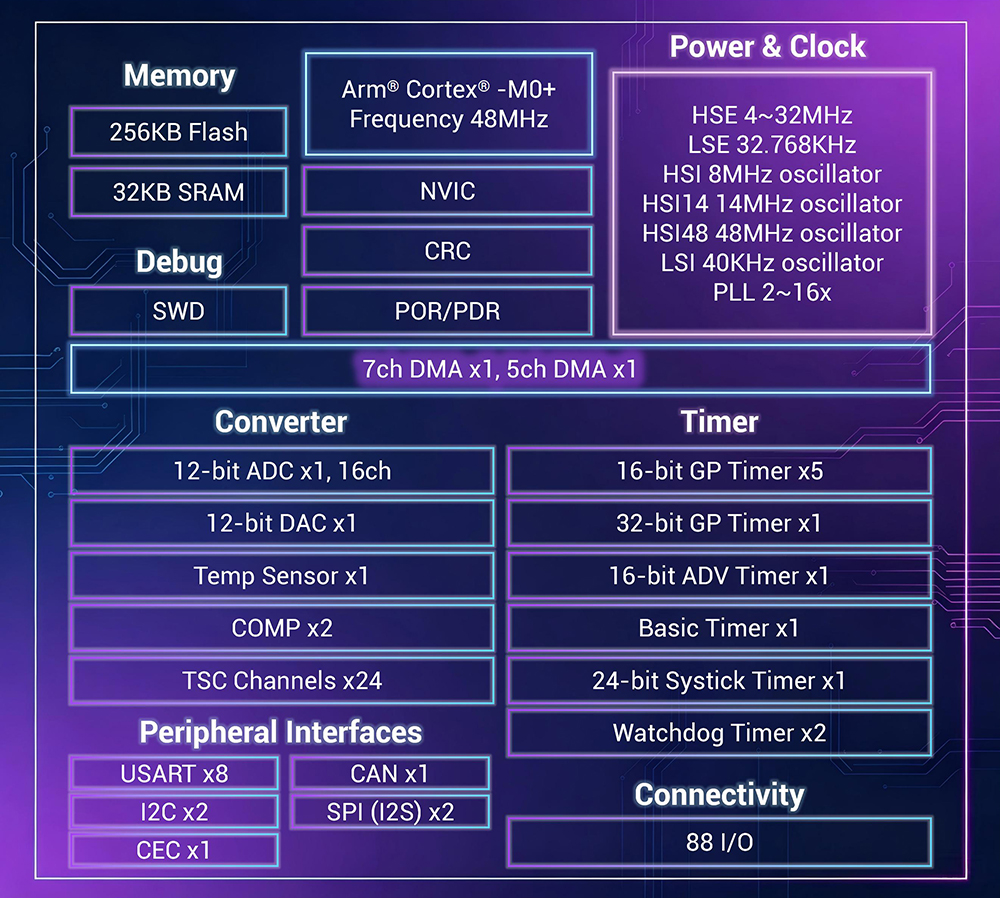

System
- Arm® Cortex® -M0+
- Frequency 48MHz
- Built in RTC
- Built in 5/7 channel DMA
Memory
- Flash: 128~256KB
- SRAM: 32KB
Power Consumption
- Supply voltage：2.0V~3.6V
- Support programmable voltage monitor
- Support sleep, stop, standby modes
Timer
- 16/32-bit universal timer: 5/1
- 16-bit advanced timer: 1
- 16-bit basic timer: 2
- Watchdog timer: 2
- 24-bit SysTick: 1
Analog peripherals
- 12-bit ADC: 1; external channel: 16
- 12-bit DAC: 1; channel: 2
- Programmable analog comparator: 2
- TSC Channals: 24
I/O
- Up to 88 I/O
- Be mapped to external interrupt vector
- Up to 69 I/Os that tolerate 5V input
Security
- 96-bit unique identity
- CRC cells
Debug Mode
- SWD
Peripheral
- USART: 8
- I2C: 2
- SPI: 2
- I2S: 2
- CAN: 1
- HDMI CEC
Package
- LQFP48/64/100
- QFN48
