Geehy | LXD3125R

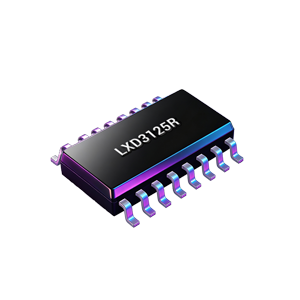

LXD3125R is a compact gate driver IC for P/N MOSFET-based three-phase motors, operating at 5.5V–30V with 3.3V/5V logic input support. It integrates a 5V/60mA LDO for internal and external MCU power and features undervoltage, shoot-through prevention, startup protection, and a 400ns dead time. Housed in a SOP16 package, it suits low-voltage fans, ceiling fans, small water pumps, and handheld BLDC applications.

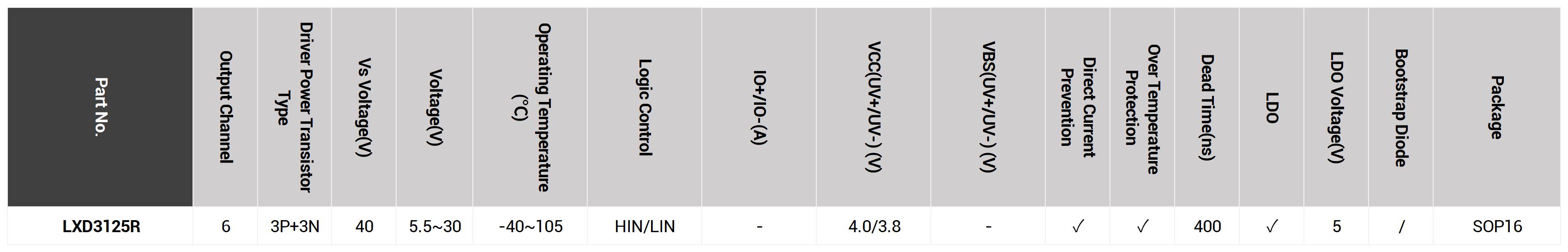

Performance

Operating voltage: 5.5V~30V

Logic input compatibility: 3.3V/5V

Integrated 5V/60mA LDO

Advanced Protection Functions

Power supply voltage protection: 4.0V/3.8V
Over-temperature protection: 135℃/150℃
Shoot-through prevention
LDO high-load startup protection
400ns dead time for improved switching

Low standby power

High- and low-side channel matching

HO output: +260mA/-80mA @ Vsup=24V

LO output: +50mA/-240mA @ Vsup=24V

Package

SOP16
