Operating voltage: 5.5V to 20V
3.3V/5V logic input compatibility
Floating offset voltage up to +200V
Deadband time: 230ns
Integrated shoot-through prevention
Integrated VCC/VBS undervoltage protection
Integrated bootstrap diode

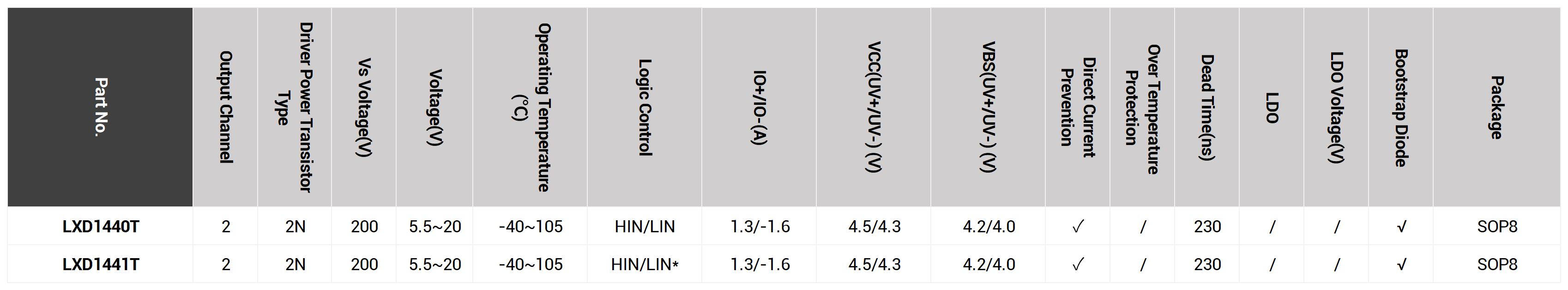

GHD1440T：HIN/LIN
GHD1441T：HIN/LIN*(*indicates phase inversion)
Built-in input/output pull resistors
Matched propagation delay for high-side and low-side channels
Peak source current: 1.6A@15V, 35ns fall time (3.3nF load)
Peak sink current: 1.3A@15V, 55ns rise time (3.3nF load)

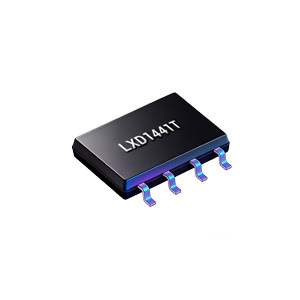

Package
- SOP 8
