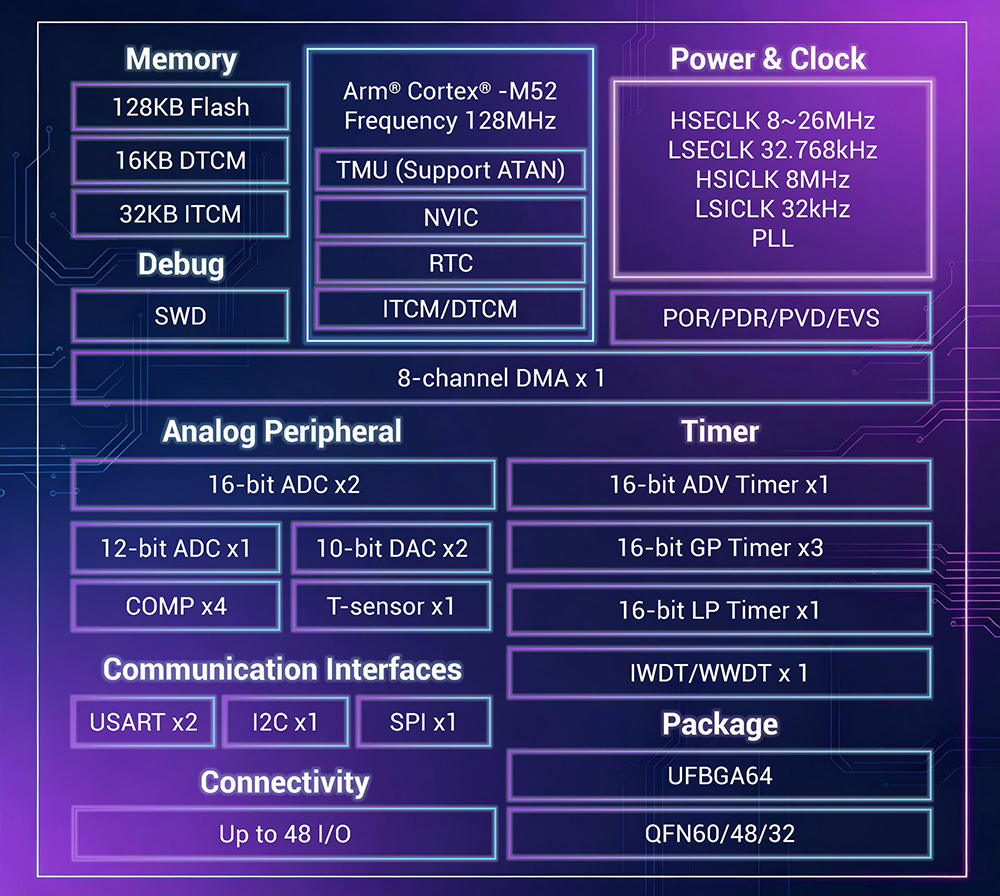

System
Arm® Cortex®-M52 - Operating frequency: 128 MHz
- Integrated hardware TMU with ATAN operation
- Support ITCM/DTCM extensions
Memory
Flash: 128 KB - DTCM: 16 KB
- ITCM: 32 KB
Power Management
Operating voltage: 1.7~3.6 V - Supports POR/PDR
- Supports programmable power voltage detector(PVD)
- Supports main power detection(EVS)
Timers
16-bit Advanced Timer: 1 - 16-bit General-purpose Timers: 3
- 16-bit Low-power Timer:
- Watchdog Timers: 2
Analog Peripherals
16-bit ADC: 2 - 12-bit ADC: 1
- 10-bit DAC: 2
- Temperature Sensor: 1
- Programmable comparators(COMP): 4
I/Os
Up to 48 I/Os - All I/O are mapped to external interrupt vectors
Clock
HSECLK: 8–26MHz external crystal/ceramic oscillator - LSECLK: 32.768kHz crystal/ceramic oscillator
- HSICLK: Factory-calibrated 8 MHz RC oscillator
- LSICLK: 32kHz RC oscillator
- PLL: Up to 128MHz output
Communication Interfaces
USART: 2 - I²C: 1
- SPI: 1

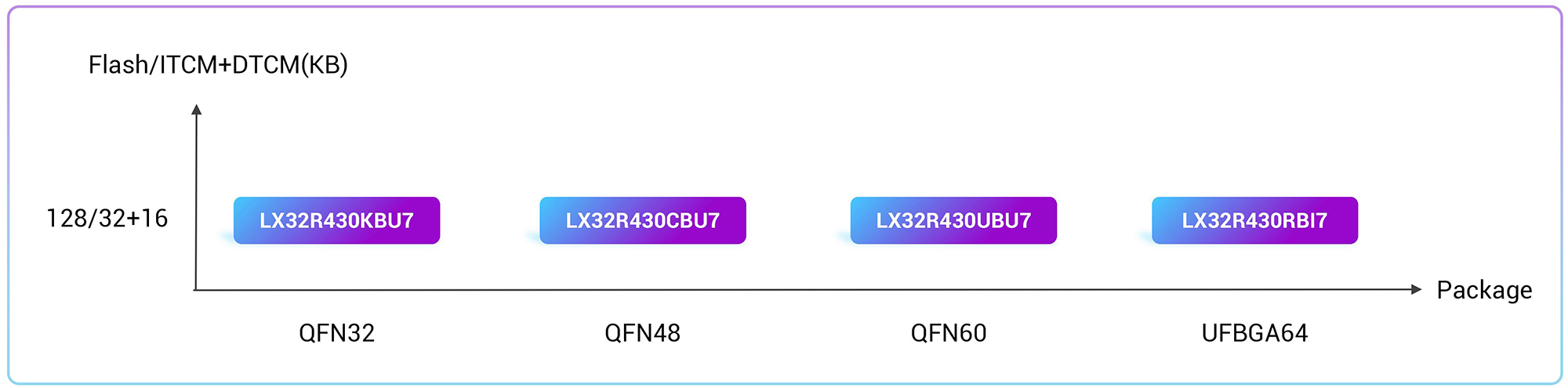

Package
UFBGA64 - QFN60/48/32
